Euresys

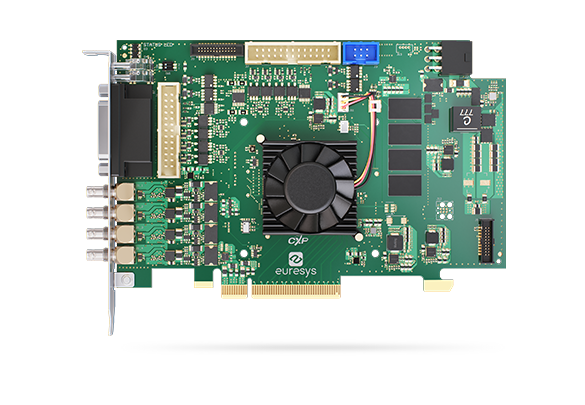

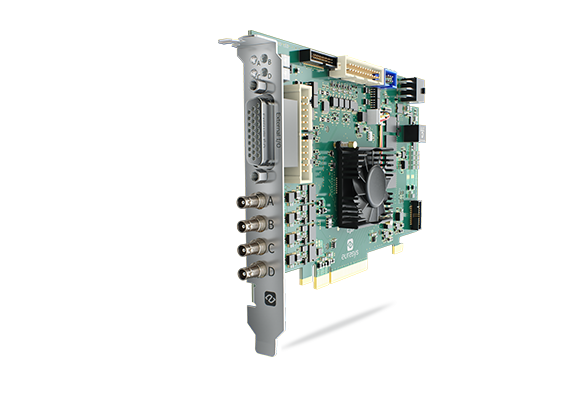

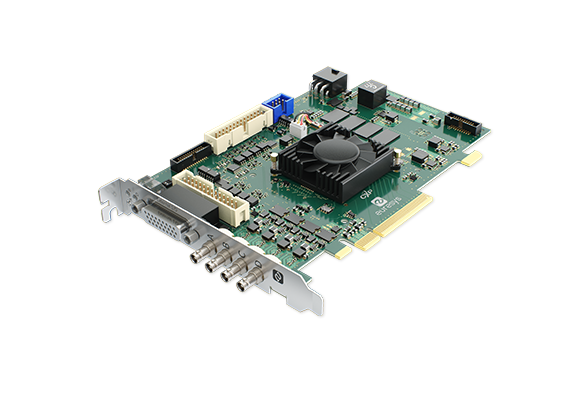

Coaxlink Quad CXP-12 Value

Coaxlink Quad CXP-12 Value

-. CoaXPress CXP-12 연결 4개: 카메라 대역폭 5,000MB/s
-. PCIe3.0 (Gen3) x8 버스: 버스 대역폭 6,700MB/s
-. 기능이 풍부한 디지털 I/O 라인이 20개
-. 다양한 카메라 제어 기능
-. Memento Event Logging Tool

바로 문의하기

SPECIFICATION

Maker	EURESYS	Weight	TBD g, TBD oz
Form Factor	PCI Express 3.0 x 8	Peak delivery bandwidth	7,800 MB/s
Camera Configuration	COAXPRESS	Effective (sustained) delivery bandwidth	6,700 MB/s (Host PC motherboard dependent)
Delivery Bandwidth	6700	Power consumption	Typ. TBD W (TBD W @ +3.3V,TBD W @ +12V), excluding camera and I/O power output
Number of Cameras	4	-	-
Camera Support	Gray, RGB, Bayer, Area, Line	-	-
Dimensions	PCB L X H: 167.65 mm x 111.15 mm, 6.6 in x 4.38 in	-	-

제품소개

Coaxlink Quad CXP-12 Value

SPECIFICATION
